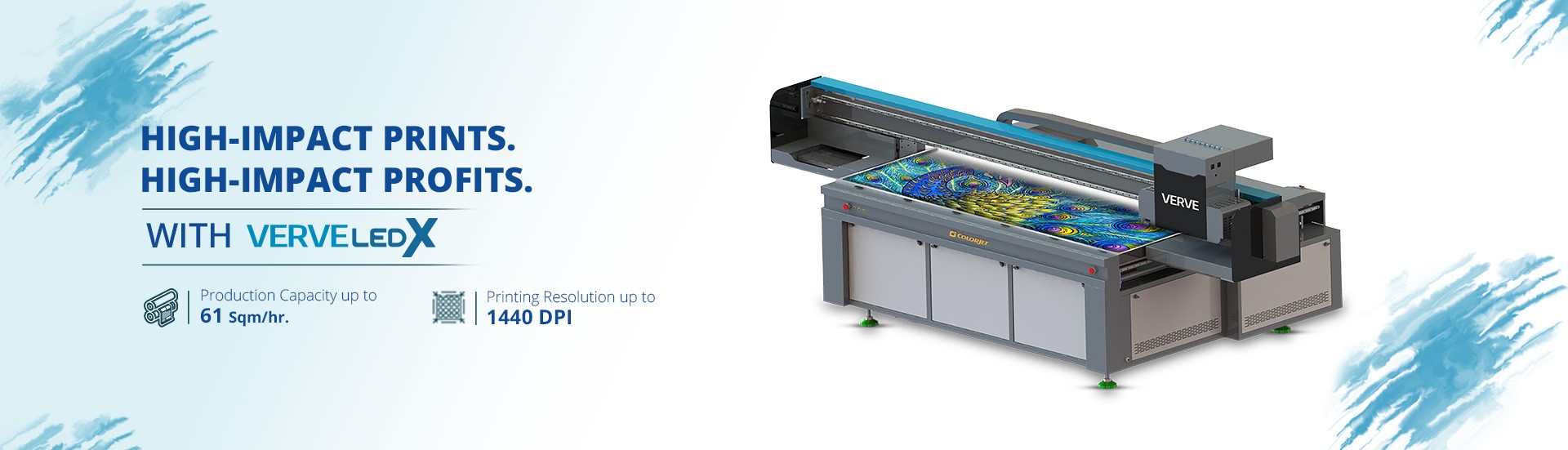

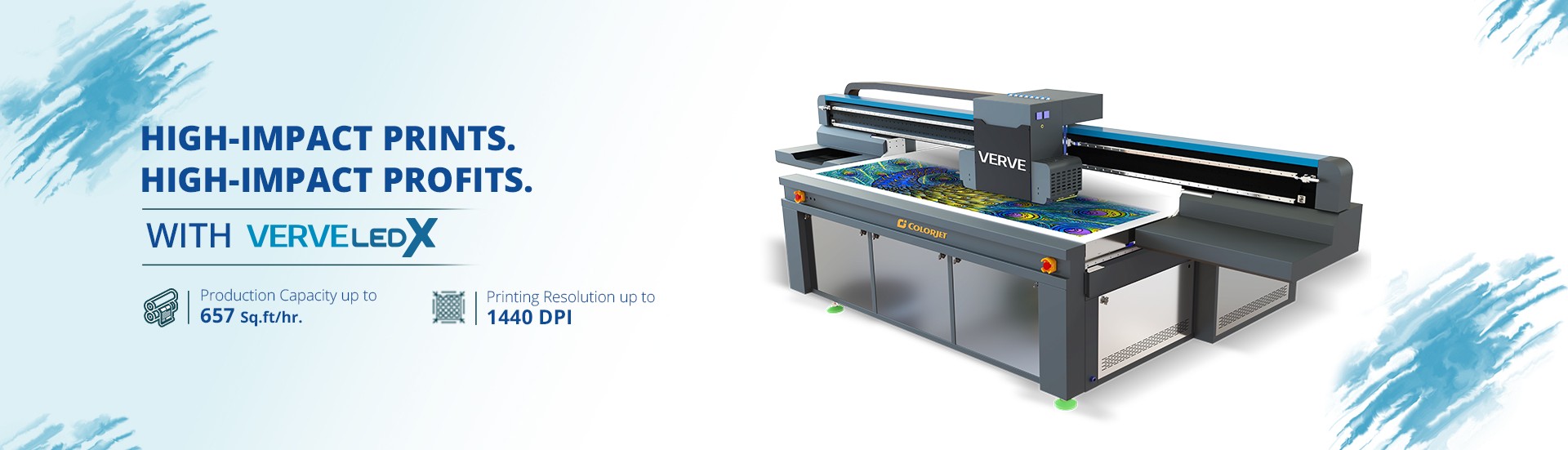

High Impact Prints. High Impact Profits
Specification
Verve LED 2513 X enables high quality direct printing on almost any kind of materials, including wood, glasses, leather, ceramic tiles & much more.
Verve LED 2513X |
||||||
| Models |
KX2513M |
|||||
|---|---|---|---|---|---|---|
| Print Technology |
Drop-on-demand, piezo electric inkjet |
|||||
| No. of Print Heads |
4 to 8(6 PL) |
|||||
| Media | Size |
2.55 m x 1.35 m |
||||
| Thickness |
Maximum 100mm |
|||||
| Handling |
Suction |
|||||
| Printing size |
2.5 m x 1.3 m |
|||||
| Curing System |
Dual UV LED Lamps |
|||||
| Ink | Type |
UV LED Curable Ink |
||||
| System |
Bulk Ink Refillable System |
|||||
| Colors |
CMYK + W + V |
|||||
| Printing Resolution (dots per inch) |
1440 DPI |
|||||
| Distance Accuracy |
Error of less than ± 0.3 % of distance travelled, or ± 0.3 mm, whichever is greater |
|||||
| Connectivity / Interface |
USB 3.0 |
|||||
| Power Requirments |
AC 220 V, 30A, 50/60 Hz |
|||||
| Dimensions (Printer Only) (LXWXH) |
4660 x 2180 x 1480 mm |
|||||
| Dimensions (With Packing) (LXWXH) |
4830 x 2280 x 1840 mm |
|||||
| RIP Software |
Onyx (ColorJet Edition) |
|||||
| Weight(Net Weight / Gross Weight) Kgs |
1450 / 1650 |
|||||
| Environmental | Power ON |
Temperature 18 to 28o C, Humidity 20 to 60%RH (Non-condensing) |
||||
| Power OFF |
Temperature 5 to 40o C, Humidity 20 to 80%RH (Non-condensing) |
|||||
|
Print Speed (In Sq. Meter / Hrs) |
||||||
|
KM 1024A |
||||||
| Modes |
Print DPI |
Passes |
4 Head |
8 Head |
||
|
1 Row |
2 Row |
|||||
| Mode 1 |
540 x 1440 |
4 |
34 |
61 |
||
| Mode 2 |
540 x 1080 |
6 |
23 |
41 |
||
| Mode 3 |
540 x 1440 |
8 |
17 |
30 |
||
Printer Highlights
Anti-Static Lonizer
ROHS Complaints Inks
4 Zone Vacuum System
Anti Crash System
Dual Media Height Detection System
100 Mm Media Thickness
Dual Negative Pressure System
